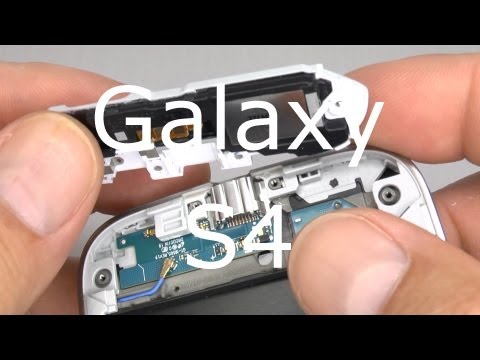

Galaxy S4 Disassembly & Assembly Teardown - Screen & Case Replacement

13 Просмотры

  • Спасибо! Поделитесь с друзьями!

    Вам не понравилось видео. Спасибо за то что поделились своим мнением!

admin
Издатель
Visit the link below to find parts and tools to repair your Samsung Galaxy S4: http://www.etradesupply.com/samsung/galaxy-models/samsung-galaxy-s4-gt-i9500.html?acc=045117b0e0a11a242b9765e79cbf113f

Screen Replacement Guide: http://www.youtube.com/watch?v=wPXVnTlrqeo

Loudspeaker 1:30
Rear housing 2:37
USB & Microphone 5:15
SIM & SD Tray 6:54
Earpiece & Proximity/Gesture Sensor 7:38
Mainboard Off 10:20
Camera Lens 10:58
Headphone Socket 12:25
Vibrating Motor 14:08

Dial *#0*# to enter diagnostics

DIY repairs will void any warranty but may save you £$ :-)

L1 is an external test port for the GSM/3G Radio
R1 is an external test port for the 4G Radio
The blue antenna cable is for 3G/GSM
My studio setup http://goo.gl/BpjKdc
Shot up close with a Panasonic HC-X900

Links referencing parts in this description provide me credit. Thanks for your support :-)
